Characteristic:

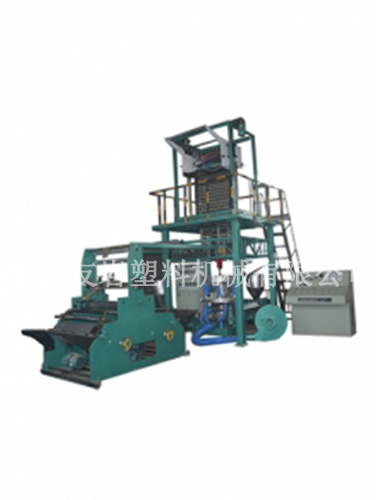

Double film blowing machine adopts Germany Rhine Haosen advanced technology, advanced manufacturing technology. The main parts are the use of special equipment to ensure that the flow to higher accuracy and good surface roughness, the mold body is interchangeable with strong, small resistance, material flow, temperature distribution, the mold rotation stability, good sealing performance. The unit is better than the best of the same kind of product per unit output forty percent single blow linear material, and ensure that it is a certain degree of height and transparency. The physical properties of the plastic products made by this unit are improved. Nose using Taiwan head. The unit runs reliably, the main output of the machine is up to the standard, the plastic effect is good, the precision of mould manufacturing and the surface roughness is high, traction, the winding tension is constant, the size can be adjusted, the collection is in order.
Uses:
Double film blowing machine for blowing low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE), Metallocene Linear low density polyethylene (MLDPE), polypropylene PP plastic film, widely used in food, fruit, clothing, textile, plastic film greenhouse film, pressure sheet composite membrane.
Technical specification:
Model: SGM-60X30-1600
Screw diameter: 60mm
Screw length diameter ratio: L/D 30:1
Screw speed: r/min 20-120
Main motor power: 37KW
Maximum output: 160kg/h
Product thickness: 0.005-0.10mm
Product maximum folding width: 1200mm
Die size: 160mm 250mm 120mm
Total electrical power: 45KW
Appearance scale (length x width x height): 5600mx3000mx5000mm
Machine weight: 4000kg
Model: SGM-80X30-2200
Screw diameter: 80mm
Screw length diameter ratio: L/D 30:1
Screw speed: r/min 20-120
Main motor power: 55kW
Maximum output: 320kg/h
Product thickness: 0.006-0.15mm
Product maximum folding width: 2100mm
Die size: 500mm
Total electrical power: 78kw
Appearance scale (length x width x height): 7000mx4200mx8000mm
Machine weight: 7500kg
Model: SGM-90X30-3000
Screw diameter: 90mm
Screw length diameter ratio: L/D 30:1
Screw speed: r/min 20-120
Main motor power: 75KW
Maximum output: 450kg/h
Product thickness: 0.006-0.15mm
Product maximum folding width: 2900mm
Die size: 680mm
Total electrical power: 108kw
Appearance scale (length x width x height): 9500mx4600mx1200mm
Machine weight: 8500Kg
Model: SGM-70X30-2000
Screw diameter: 70mm
Screw length diameter ratio: L/D 30:1
Screw speed: r/min 20-120
Main motor power: 45KW
Maximum output: 240kg/h
Product thickness: 0.005-0.10mm
Product maximum folding width: 1900mm
Die size: 400mm
Total electrical power: 68kW
Appearance scale (length x width x height): 7000mx3600mx7000mm
Machine weight: 6800kg
Plastic film blowing machine manufacturers according to the design and processing of various specifications of the rotating head and a rotary air ring, quick screen changing device to users. Three bags of products, responsible for the safety of debugging, Daipei operators, welcome customers to negotiate purchase.
